Introduction
HDZero AIO15 is the world’s first digital video AIO, enabling bind and fly 80mm whoops to weigh less than 33.4g. AIO15 integrates a G4 based flight controller, HDZero 5.8GHz digital video transmitter, Serial 2.4GHz ExpressLRS 3.0 receiver, BlueJay 4-in-1 15Ax4 ESC, and a 5V/1A BEC. It is ideal for tiny whoop freestyle.
The AIO15 utilizes a composite video interface rather than MIPI, reducing both footprint and weight. It is fully compatible with the HDZero Lux and Eco cameras, but not with any other camera that has MIPI connectors.
It is available at major FPV resellers worldwide, and also at Happymodel and HDZero official online shops.
Specifications
MCU: STM32G473 (170MHz, 512K Flash)
Gyro: ICM42688
On board voltage and amperage meters
Built-in 15A(each) BlueJay 4-in-1 ESC
MCU: EFM8BB21
HV Current: 15Ax4(continuous), 18Ax4(peak, 3 seconds)
Factory firmware: Z_H_30_48_v0.19.2.HEX
Dshot600 ready
Built-in 5.8G HDZero VTX
RF output: 25mw/200mW
Supported channels: R1-R8, F2/F4, L1-L8
UFL connector (ultra-lite linear antenna included)
Built-in Serial ExpressLRS 2.4GHz receiver
Packet rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
Pre-soldered enamel wire antenna
Telemetry output power: <12dBm
Built-in 5V 3A BEC
Flight controller firmware target: HDZERO_AIO15
Power supply: 2S/3S battery (3.5V – 13V)
Fully compatible with the popular whoop frames
Board size:31.3x31.3mm with a 25.5x25.5 mounting hole size
Weight:7.2g (with motor plugs)

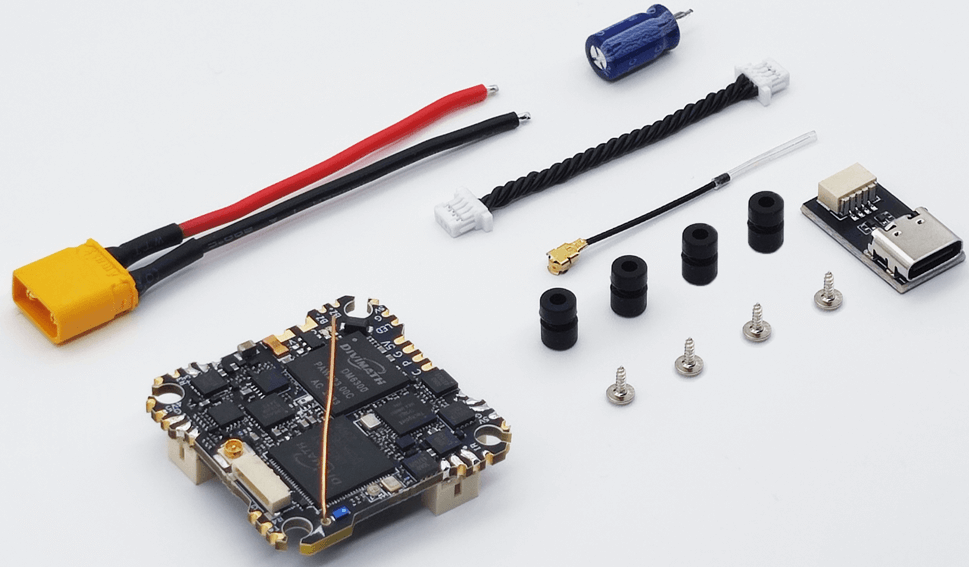

Included
1x HDZero AIO15 board
1x Power cable with XT30 connector
4x screws
4x rubber grommets
1x ultra-lite linear VTX antenna
1x JST-USB convert board and its cable
1x Capacitor (25V/150uF)
