Introduction

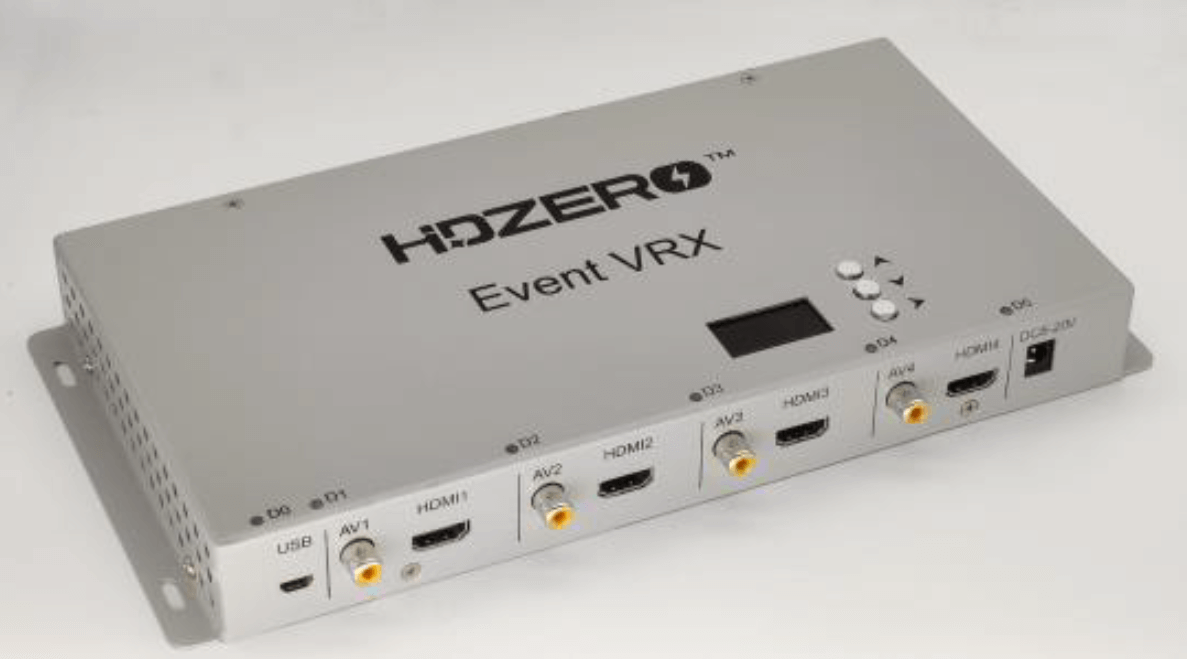

Designed in collaboration with racing pilots and MultiGP event coordinators, the HDZero Event VRX makes it seamless to integrate HDZero into race DVR and live stream setups.
The Event VRX automatically switches between analog and HDZero video based on received video signal. This means separate software is not needed to switch the recorded video between the two and no special setup is needed ahead of time.
The Event VRX outputs both HDZero and analog video on HDMI and CVBS outputs. This means you can use existing legacy analog video capture equipment such as an Owl DVR box or analog capture card, keeping cost and complexity to a minimum.
The Event VRX packs four 2-antenna HDZero receivers into one enclosure, which reduces cost and simplifies setup. The 2-antenna HDZero receivers have less noise rejection than full goggle VRX’s with 4 antennas, but still have excellent video reception for outdoor race events. 8 analog receivers are included, setup in a diversity arrangement (2 analog receivers per channel).
Features
Effortless HDZero and analog auto-switching receiver for racing events
4 channels per box, each of which can receive either an HDZero or analog signal
4x HDMI and 4x CVBS (composite analog) outputs so you can connect to HDMI capture cards or to legacy analog DVR recorders
Both digital and analog signals are output on HDMI and CVBS – system chooses video source based on signal
2x SMA antenna jacks that are shared between all 4 channels, so you only need 2 antennas for 4 channels of video
Rugged steel enclosure that is designed for mounting to a tower
2D De-interlacer improves analog video quality on HDMI output
OLED configuration screen for channel and setting changes
30W power draw, 8-20V DC input
AC to DC Power supply included
Firmware updates via USB and included Windows PC software
