Operation
Boot
Work (Display auto off with 60 seconds)

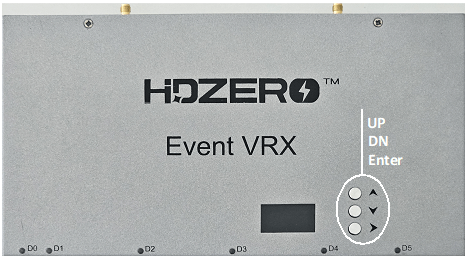

- "UP/DN" key Selects between Channels
- Short Press “Enter” Moves tri-angle cursor
- Long Press “Enter” toggles channel mode.
- Star means “HDZero Only”
- Sequare means “Analog Only”
D0: ON when it is connected to a PC with USB cable
D1-D4:
OFF: No HDZero/Analog Detected
ON: HDZero Locked
BLINK: Analog Locked
D5: Power LED
