Installation
Diagram
TOP
Bottom
Installation Notes
ELRS antenna
A line antenna (¼ wavelength) for the ELRS receiver is pre-soldered and positioned close to the board for low-profile and easy packaging. However, the ELRS antenna needs to be lifted to maintain at least 3 mm of clearance from the board.
VTX antenna
The HDZero VTX integrated into the AIO5 has a specific requirement to prevent video noise caused by the video RF signal being routed back to the onboard power amplifier.
The VTX antenna should be mounted outward, not inward, on the board.
Warning

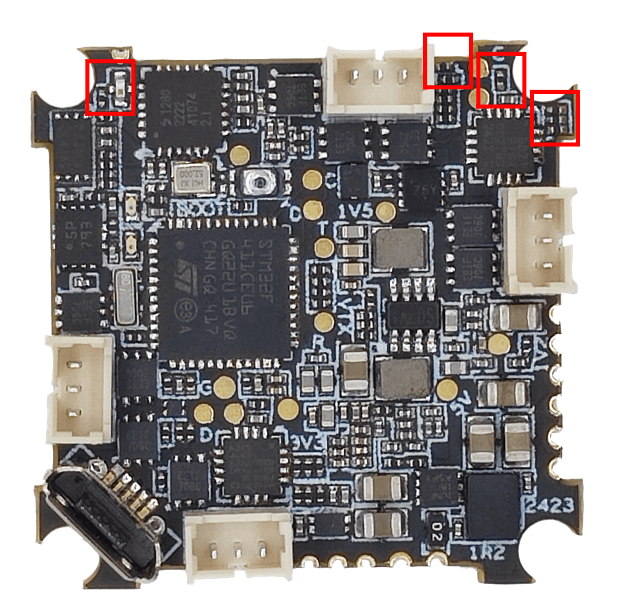

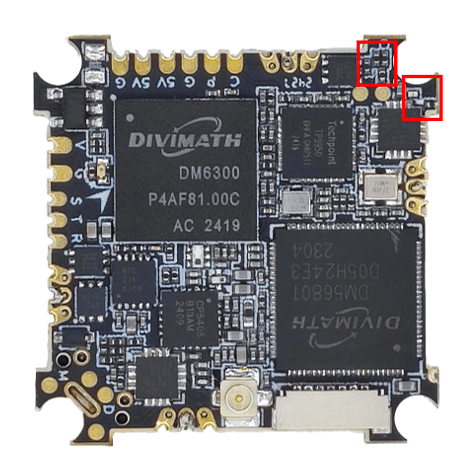

Attention must be paid to the vicinity of the edge mounting holes during installation to avoid dislodging the device, which could result in loss of functionality. In particular, the area shown below:
